Equipment and Scope of Delivery
All types of the membrane press tables VACUFORM are equipped with:
- mobile vacuum construction
- 1 membrane frame with high elastic rubber (700 % extension)
- 1 clear control board in the construction integrated
- the whole equipment is maintenance-free
- electrical connection: 400 V, 3 Ph., 50 Hz
Sizes

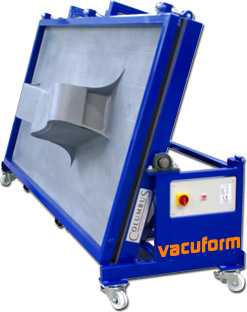

VACUFORM with tilting mechanism
1 vacuum pump in combination with 1 vacuum tank
external dimensions
length: 3200 mm
width: 1550 mm
external “swing up”
length: 3200 mm
width: 850 mm
usable area
length: 2880 mm
width: 1270 mm
work height: 900 mm
HEATING TOP for VACUFORM
air circular heating: 6 KW, 50/60 Hz
adjustment about 0 – 70 °C
VACUFORM XL WITHOUT tilting mechanism
1 vacuum pump in combination with 1 vacuum tank
external dimensions
length: 4000 mm
width: 1810 mm
usable area
length: 3880 mm
width: 1540 mm
work height: 900 mm
HEATING TOP for VACUFORM XL
air circular heating: 9 KW, 50/60 Hz
adjustment about 0 – 70 °C
Special sizes on request.
Additional equipment:
Replacement membrane made of rubber or silicone
(Operating life depends entirely on the type of use the material is subjected to)
The units are largely maintenance-free! (clean the pumps' filters from time to time)
The technical data contained herein is subject to modifications.
