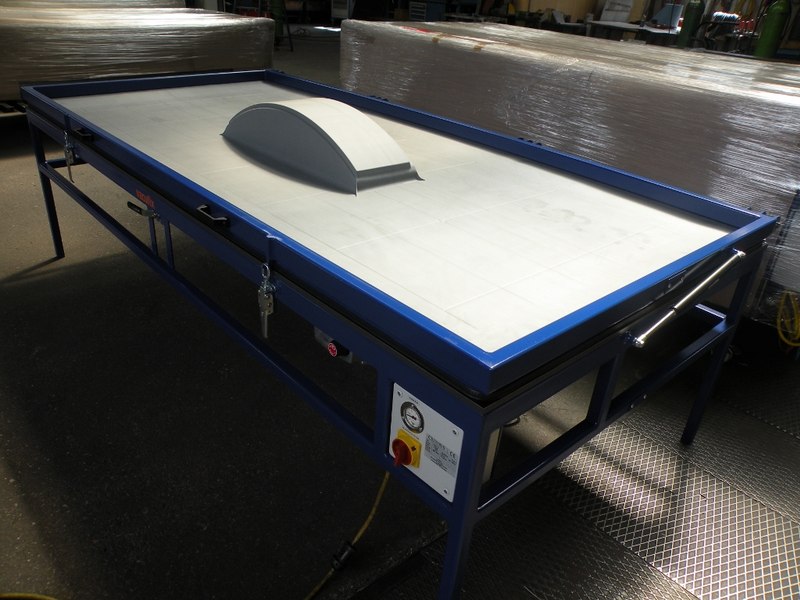

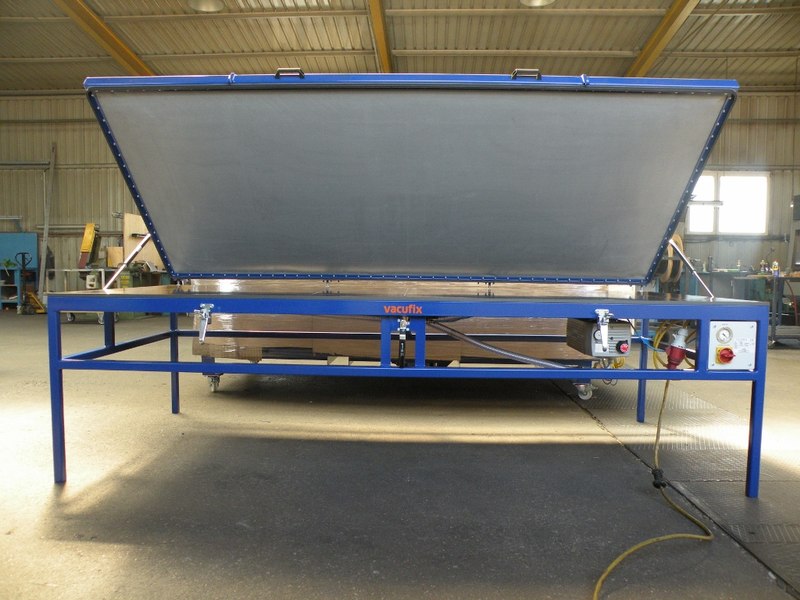

Demo MACHINE: VACUFIX – MEMBRANE PRESS
The inexpensive, time and cost-saving vacuum-membrane press for pressing, form-veneering, laminating and coating
Demonstration Machine: construction year 2018
Stationary pressing table
High quality, white resin – compressed work plate
Rotary vane vacuum pump VT 4.16, vacuum pressure to max. 900 hPa (9 t/m²), nominal displacement: 16 m³/h, with vacuum pressure valve
Pressing frame with high elastic rubber membrane (700 % elongation), max. temperature: +130 °C
Electrical connection: 400 V, 3 phases, 50 cycles
Overall dimensions: ca. 2650 mm x 1500 mm
Size inside frame: ca. 2500 mm x 1320 mm
Ask for price
Terms of delivery: ex work Austria
Area of Application
- Laminated bending
Laminating and veneering of any form and shape with wood and board materials such as: bendy plywood, plywood, thick sawn veneer, MDF, etc. - Flat pressing & bonding
Flat pressing, veneering and bonding of various materials such as: wooden board materials, recycled wood, composite materials, honeycomb boards, glass, etc. - Heating & forming
Preheating and forming of thermoplastic materials such as: Plastics (ABS, PMMA, PET-G, PVC, etc.) and Solid Surface Materials (Corian, HI-MACS, Samsung, Kerrock, etc.). - Hot forming
Vacuum hot forming and shaping of Plastics and Solid Surface Materials such as: Plexiglas, Perspex, Lucite, Staron, Avonite, Hanex, Krion, etc. - 3D-Foil laminating
3D-foil laminating of PVC and TPO furniture and interior foils from all renowned manufacturers such as: Renolit , Hornschuch, Riken, Gislaved, Kloeckner Pentaplast, Alfatherm, etc. - 3D-Thermoforming
3D-Thermoforming of plastics such as ABS, PMMA (Plexiglas, Perspex, Lucite), PET-G (Vivak), PS, PP, PVC-U, PC (Makrolon), etc. and 3D foil/film laminating
