Laminator S


Outstanding: Versatile and universal to use, fast to convert


    • coating and pressing of nearly all materials
    • laminating of films
    • thermo fusion under vacuum
    • pre-preg manufacturing
    • pressing of carbon materials
    • foil laminating
    • pressing of composites
    • thermoforming of plastics

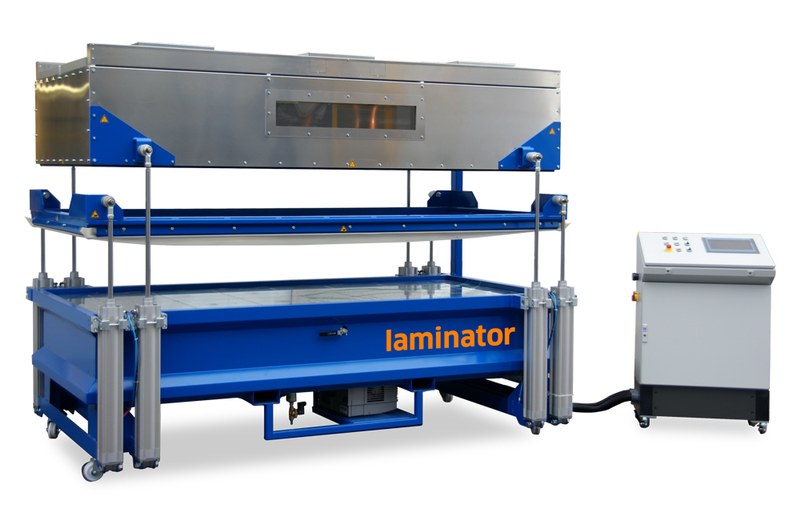

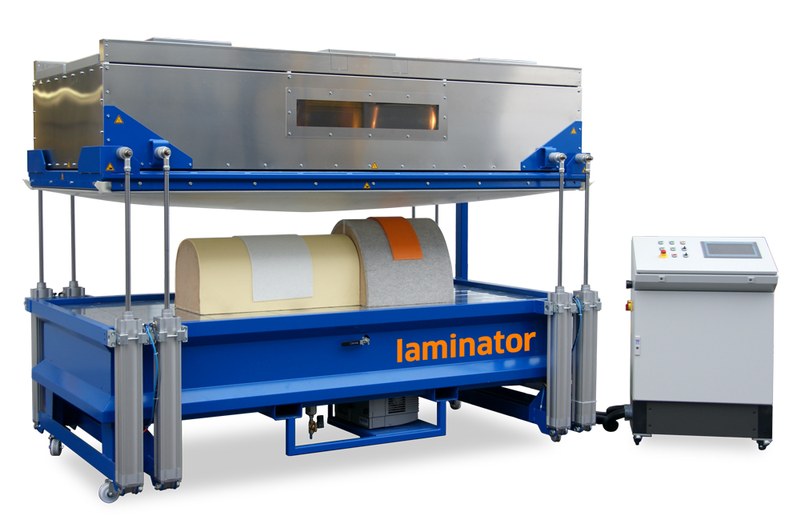

      Laminator S - A universal and sophisticated industrial press for individual solutions in production and research. Modular extendable!

      Laminator


      Laminator S - At a glance!

        • working surface ca. 2880 x 1280 mm
        • circulating heating power of 27 kW
        • temperature range 20 °C – 210 °C
        • precise temperature distribution
        • stroke of 600 mm
        • 80 m³ vacuum pump
        • variable process configuration easily done with the touch panel
        • pressing, forming and laminating of materials with the membrane
        • forming and laminating of materials with the deep drawing frame


        Biggest advantage

        Versatile and universal to use, fast to convert!

        Laminator


        Laminator


        More advantages:


        Design

        • robust and distortion resistant, welded steel construction
        • mobile machine on wheels or stationary machine


        Movement

        • vertical drive
        • precise and effortless movement with oil free pneumatic cylinders
        • heating hood and pressing frame can move separately


        Heating hood

        • precise temperature distribution
        • permanent hot air stream for a 100 % process reliability
        • the heating hood moves with the deep drawing frame
        • inner height of 450 mm for bigger work pieces


        Membrane

        • very robust and long lasting silicone membrane
        • membrane change system for a fast change to use various membranes (silicone membranes, vacuum films, polyolefin films)


        Working surface

        • fine grinded, hard wearing aluminium working top
        • three suction points
        • uniform suction distribution with porous materials (e.g. MDF)
        • customised inlets for tool cooling or measuring sensors
        • optional: phenolic resin board with routed air evacuation channels for temperatures up to 140°C


        Deep drawing frame

        • two systems available
        • customised subframes
        • simple and fast locking of the subframe onto the deep drawing frame with star knobs


        Vacuum pump

        • selction of vacuum pumps
        • proven and sound BECKER dry running rotary vane pumps
        • dry claw vacuum pumps
        • oil lubricated rotary vane pumps with different performance levels


        Control unit and programs

        • SIEMENS HMI touchpanel
        • Programs for heating and cooling cycles with adjustable vacuum pressure. Easy programming of up to ten process steps to adapt to any task. Saving of the individual programs.
        • Sensor operated programs for heating processes guided by the core temperature in the material. Control sensors for the top and bottom side of the material.
        • manual and automatic process possible


        Versions

        • vertical movement
        • hinged movement


        Upgrades

        • the machine can be individually upgraded
        • various components can be combined
        • individual colour selection within the RAL scale
