Laminator S - Features

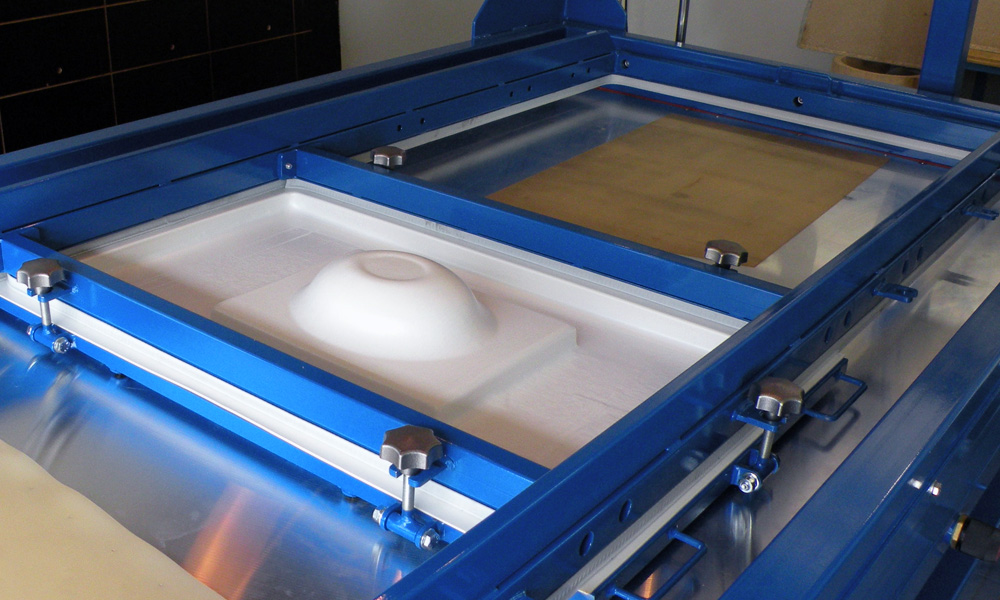

Deep drawing frame, optional


Tiefziehen

fixed frame width of 1000 mm (usable size 900 mm)
lengths of 600, 1250, 1500, 2000 und 2700 mm

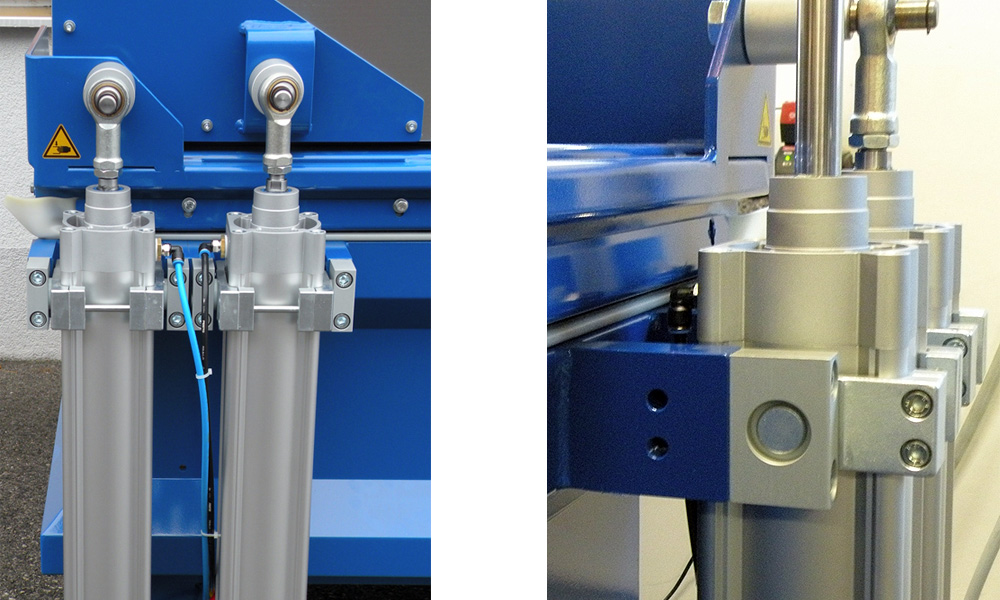

Pneumatic


Pneumatikzylinder

Long life, oil-free pneumatic cylinders for reliable long term movement of the pressing frame and the heating hood. Stroke 650 mm.

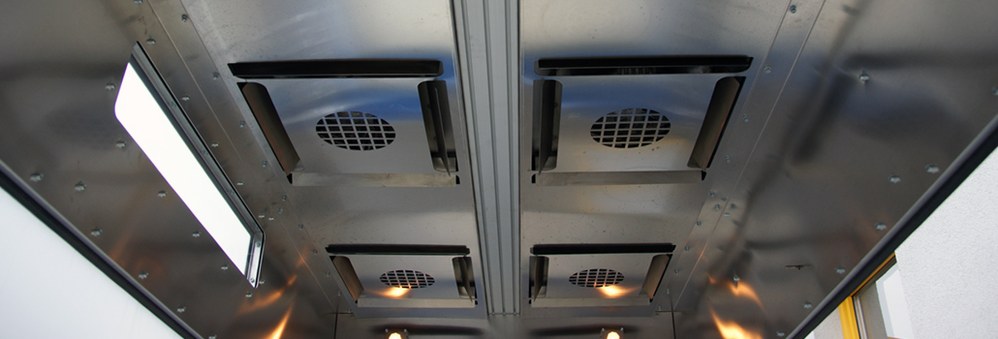

Heating hood


Laminator

Heating power with 6 CHS-heating elements! Inside height of 450 mm

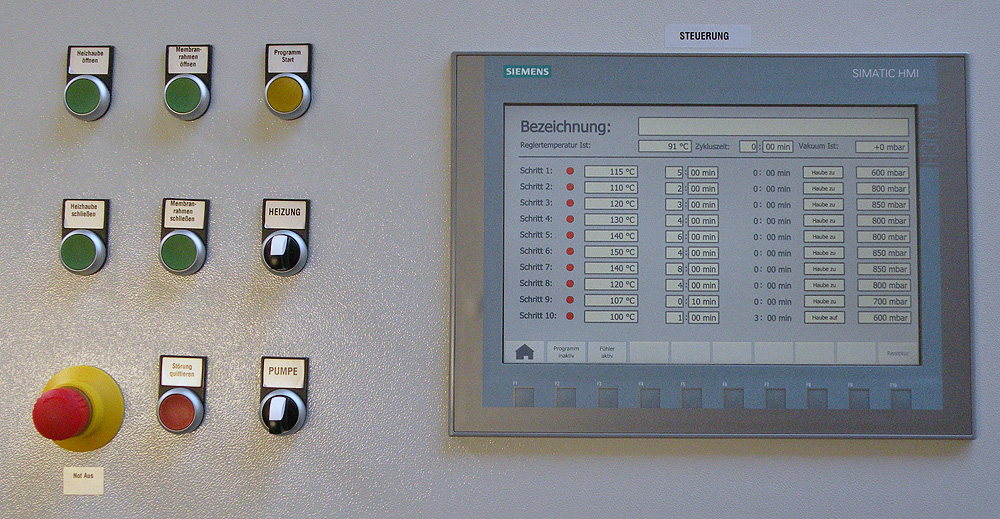

Control panel


Laminator

Functionally arranged control panel with SIEMENS TOUCH HMI


Programme menu


Siemens-Steuerung

SIMATIC HMI touch panel: easy process programming with variable parameters and up to 10 process steps. Parameters: temperature, time, opening of the heating hood for cooling and vacuum pressure.

Sensor operated programme, optional


Fühlergefürtes Programm

Heating processes guided by the core temperature in the material, control sensors for the top and bottom side of the material.

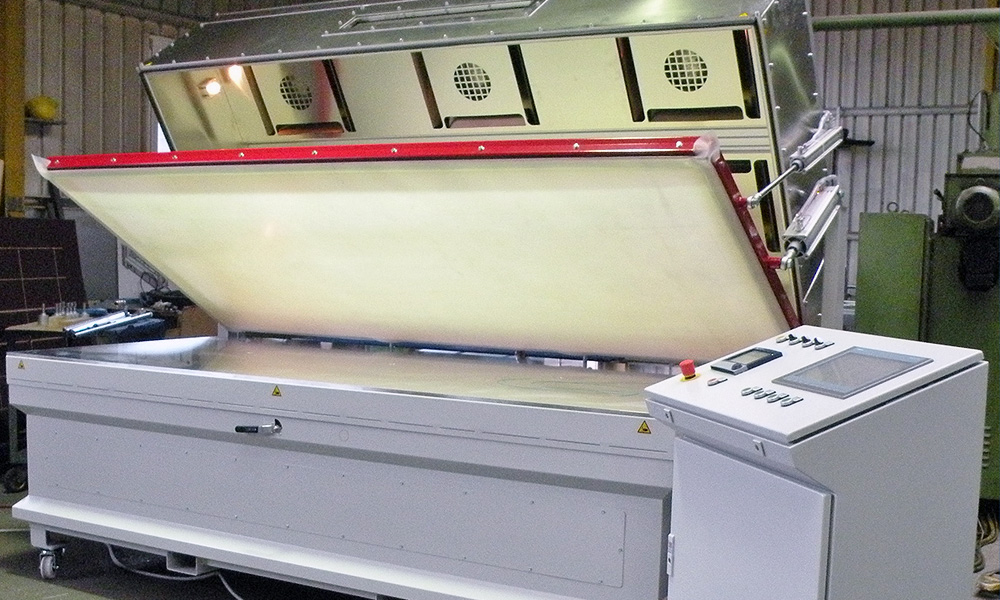

Hinged model also available


Öffnungsmechanismus

Laminator S – prepared for everything

Multi-tasking with future materials
e.g. pre-pregs, hot drape forming, composites, carbon fibre technology

Consistent
working with contemporary materials
e.g plastics, PVC foils (standard and high gloss), Boltaron, Kydex, leatherette, etc.
